Joystick Sensor
See also
See the Python reference of this logic brick in SCA_JoystickSensor.
The Joystick Sensor triggers whenever the joystick moves. It also detects events on a range of ancillary controls on the joystick device (shoulder triggers, buttons, etc.). More than one joystick may be used (see “Joystick Index”).
Note
UPBGE maps all the joysticks against the layout of Xbox 360 game controller. This way is easier to setup the different movements or actions because you have to do it for one type of controller only.
Joystick sensor
Properties
See Sensor Common Options for common options.
- Event Type
A menu to select which joystick event to use, each is described later.
- Joystick Index
Specifies which joystick to use.
- All Events
Sensor triggers for all events on this joystick’s current type.
Stick Directions
Detect movement in a stick.

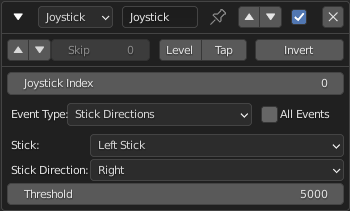

Joystick Stick Directions
- Stick
Stick to detect a input: Left Stick/Right Stick.
- Stick Direction
Direction of the stick moving: Right/Left, Up/Down.
Stick Axis
Detects the axis of the joystick.

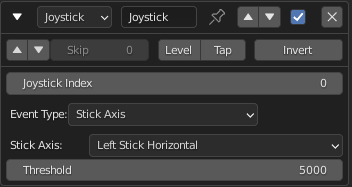

Joystick Stick Axis
- Stick Axis
Which axis either of the sticks are moving on Left Stick Horizontal/Vertical, Right Stick Horizontal/Vertical.
Shoulder Triggers

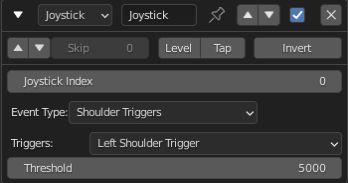

Joystick Shoulder Triggers
- Triggers
Triggers that are used: Left/Right Shoulder Trigger.
Buttons

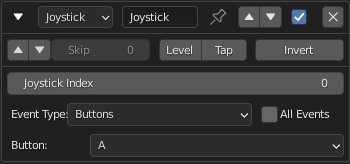

Joystick Buttons
- Button
Buttons that are used:
A,B,X,Y, Dpad Right/Left/Up/Down, Right/Left Shoulder, Right/Left Stick, Start and Guide.
